Perforated Cable Tray Supplier & Exporter in UAE
Superfab Inc. is a Perforated Cable Tray supplier and exporter to UAE, manufacturing in Mumbai, India and shipping to projects in Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, Jebel Ali Free Zone and KIZAD.
Our perforated cable trays are one-piece trays with a uniform slot pattern for ventilation, drainage and cable-tie fixing, made in six flange types (SIP1–SIP6), 50–1200 mm wide, 15–150 mm high and 1.0–3.0 mm thick, with bends, tees, risers, reducers and covers in the same finish.
The UAE is the largest Gulf market for Indian cable trays, driven by oil & gas and petrochemical expansion in Abu Dhabi, Dubai's commercial and hospitality towers, utilities and desalination plants, data centres and the industrial free zones at Jebel Ali and KIZAD. In UAE, perforated trays are most often specified for instrumentation and control routes in Abu Dhabi process plants and Dubai MEP works, carrying control, instrumentation and light power cables that can be tied neatly through the slots.
Orders for the UAE are packed for sea freight and shipped from Nhava Sheva (JNPT), Mumbai to Jebel Ali or Khalifa Port – one of the shortest and most frequent sea routes from India. Commercial invoice, packing list and certificate of origin are prepared for each shipment.
Need a price for Perforated Cable Trays in UAE? +91 98208 02872 Request a Quote
Perforated Cable Trays for UAE's Industries
| Sector | Key areas in UAE | Typical perforated cable tray routes |
|---|---|---|
| Oil, gas & petrochemicals | Abu Dhabi, Ruwais, Fujairah | Process-area power, control and instrumentation cables |
| Commercial towers & hospitality | Dubai, Abu Dhabi, Sharjah | Risers, basements, car parks and MEP services |
| Utilities & desalination | Jebel Ali, Taweelah | Power-plant and pump-station cable routes |
| Data centres | Dubai, Abu Dhabi | White-space power and data cable routes |
| Free zones & industry | JAFZA, KIZAD, RAK | Warehouse, factory and utility cabling |
Choosing the Right Perforated Cable Tray Finish for UAE
The UAE combines extreme heat, strong UV, wind-blown sand and humid, salty coastal air, so hot-dip galvanised trays are the minimum for outdoor runs, SS 316 or aluminium is preferred near the sea and in process areas, and pre-galvanised trays are limited to air-conditioned interiors. For perforated cable trays, we generally recommend pre-galvanised SIP1/SIP2 trays for indoor control and instrumentation runs, hot-dip galvanised trays for outdoor and utility areas, and SS 304 / SS 316 or aluminium where chemicals, wash-downs or coastal air are present. Share your site conditions and our team will confirm the material, thickness and finish before quoting.
How We Supply Perforated Cable Trays to UAE
- Send your requirement – tray type, width × height × thickness, finish, quantity in metres and the fittings list, or your BOQ / drawing.
- Technical check & quotation – we confirm sizes, part numbers and finish, and send a quotation.
- Manufacturing in Mumbai – trays, fittings and covers are made to the approved sizes and inspected before dispatch.
- Export packing & shipment – packed for sea freight and shipped from Nhava Sheva (JNPT), Mumbai to Jebel Ali and Khalifa Port.
Perforated Cable Tray Types Exported to UAE
Perforated Cable Trays – Technical Specifications
| Flange types | SIP1 straight, SIP2 inside, SIP3 outside, SIP4 return inside, SIP5 return outside, SIP6 vertical slots |
|---|---|

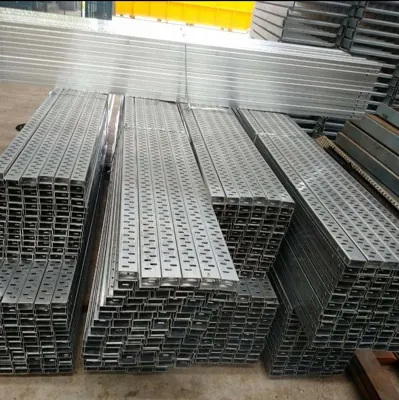

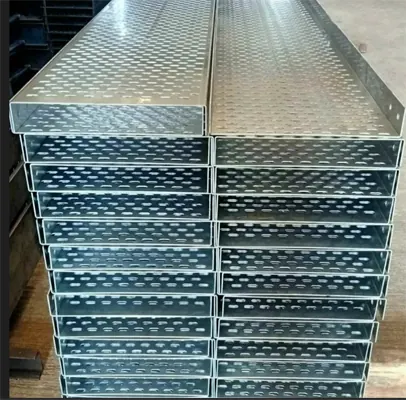

| Material / finish | Pre-galvanised, hot-dip galvanised, aluminium, powder coated, SS 304, SS 316 |
| Width | 50 mm to 1200 mm |
| Height | 15 mm to 150 mm |
| Thickness | 1.0 / 1.2 / 1.6 / 2.0 / 2.5 / 3.0 mm |
| Length | 2500 mm or 3000 mm; bends in 300–1200 mm radius |
Sizes above are standard catalogue ranges; non-standard sizes are made to drawing. Download the catalogue for part numbering.
Get a quote for Perforated Cable Trays in UAE
Share your tray size, finish and quantity. We supply across India and export worldwide.
Perforated Cable Trays in UAE – Frequently Asked Questions
Do you export Perforated Cable Trays to UAE?
Yes. Superfab Inc. manufactures Perforated Cable Trays in Mumbai, India and exports them to EPC contractors, panel builders and end users in UAE, including Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, Jebel Ali Free Zone and KIZAD.
How are Perforated Cable Trays shipped to UAE?
Orders for the UAE are packed for sea freight and shipped from Nhava Sheva (JNPT), Mumbai to Jebel Ali or Khalifa Port – one of the shortest and most frequent sea routes from India. Commercial invoice, packing list and certificate of origin are prepared for each shipment.
Which Perforated Cable Tray finish is best for projects in UAE?
The UAE combines extreme heat, strong UV, wind-blown sand and humid, salty coastal air, so hot-dip galvanised trays are the minimum for outdoor runs, SS 316 or aluminium is preferred near the sea and in process areas, and pre-galvanised trays are limited to air-conditioned interiors. For perforated cable trays we generally recommend pre-galvanised SIP1/SIP2 trays for indoor control and instrumentation runs, hot-dip galvanised trays for outdoor and utility areas, and SS 304 / SS 316 or aluminium where chemicals, wash-downs or coastal air are present.
What is the difference between SIP1 and SIP2 perforated trays?
SIP1 has a straight flange, while SIP2 has a 15 mm inside flange that stiffens the side wall. SIP3 to SIP5 add outside or return flanges, and SIP6 adds vertical slots.
What sizes of perforated cable tray do you make?
Standard widths run from 50 mm to 1200 mm, heights from 15 mm to 150 mm and thickness from 1.0 mm to 3.0 mm, in 2500 mm or 3000 mm lengths.
Which finish should I choose for outdoor use?
Hot-dip galvanised or stainless steel perforated trays suit outdoor, coastal and chemical areas; pre-galvanised trays are normally used indoors.
